Smart Pro Stander

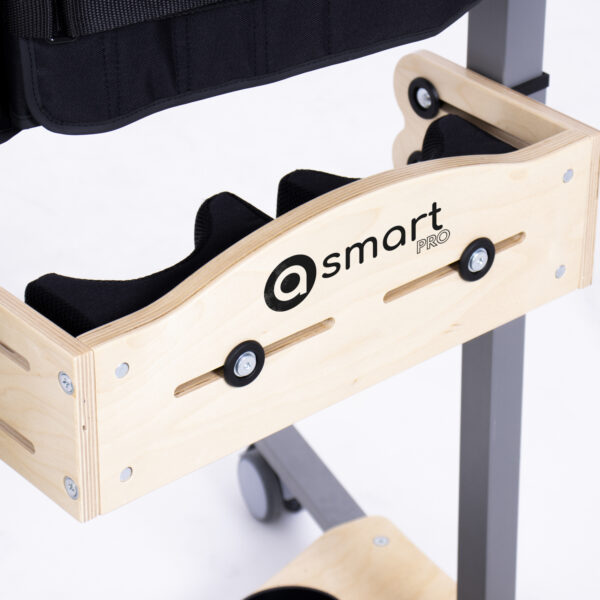

SMART PRO™ Stander’s static standing frame provides security whilst providing complete freedom of movement in the upper limbs, encouraging activity and independence. The knee support and height adjustments are now achieved in a smooth stepless way, offering quick adaptation to thew users individual needs. The innovative UPRIGHT PRO™ system of a chest and pelvic belt, allows for broad adjustment possibilities.
Description
SMART PRO™ Stander enables the user to be in an upright position, highly durable, easy to use and stable. The SMART PRO™ Stander has a reduced number of size variations from the previous model (from 8 down to 5), however still maintains the full range of adjustments. Whilst increasing comfort and the ability for the stander to adapt and grow with the user.
SMART PRO™ Stander’s static standing frame provides security whilst providing complete freedom of movement in the upper limbs, encouraging activity and independence. The knee support and height adjustments are now achieved in a smooth stepless way, offering quick adaptation to thew users individual needs. The innovative UPRIGHT PRO™ system of a chest and pelvic belt, allows for broad adjustment possibilities.

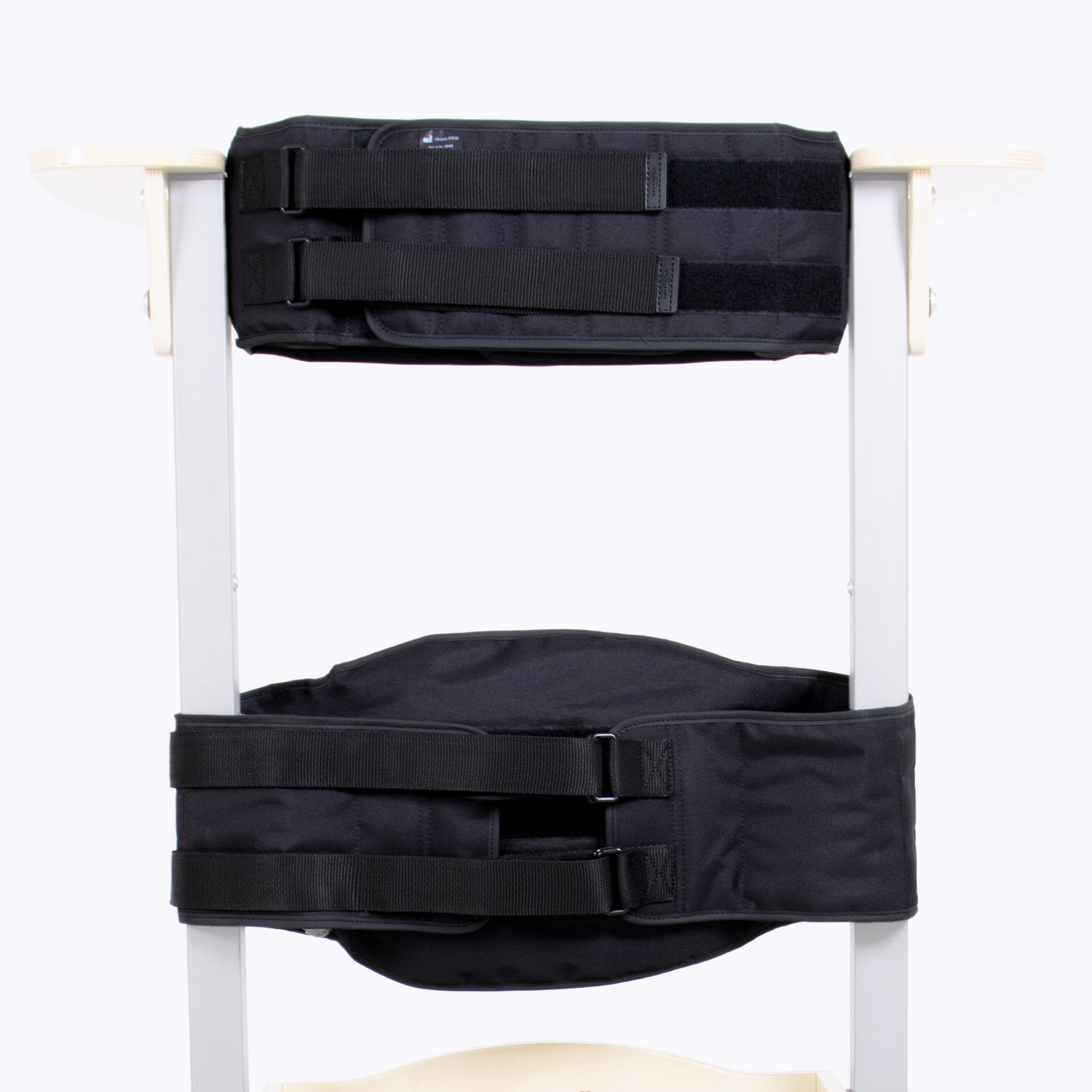

The belts strong velcro straps provide stability, safety with easy and quick adjustment, The clever design of the hip belt enables greater control over pelvic rotation and user position correction of the frontal plane.
The integrated 4 small wheels with brakes provides easy movement and further enhances the SMART PRO™ Stander’s enhanced functionality.
Features

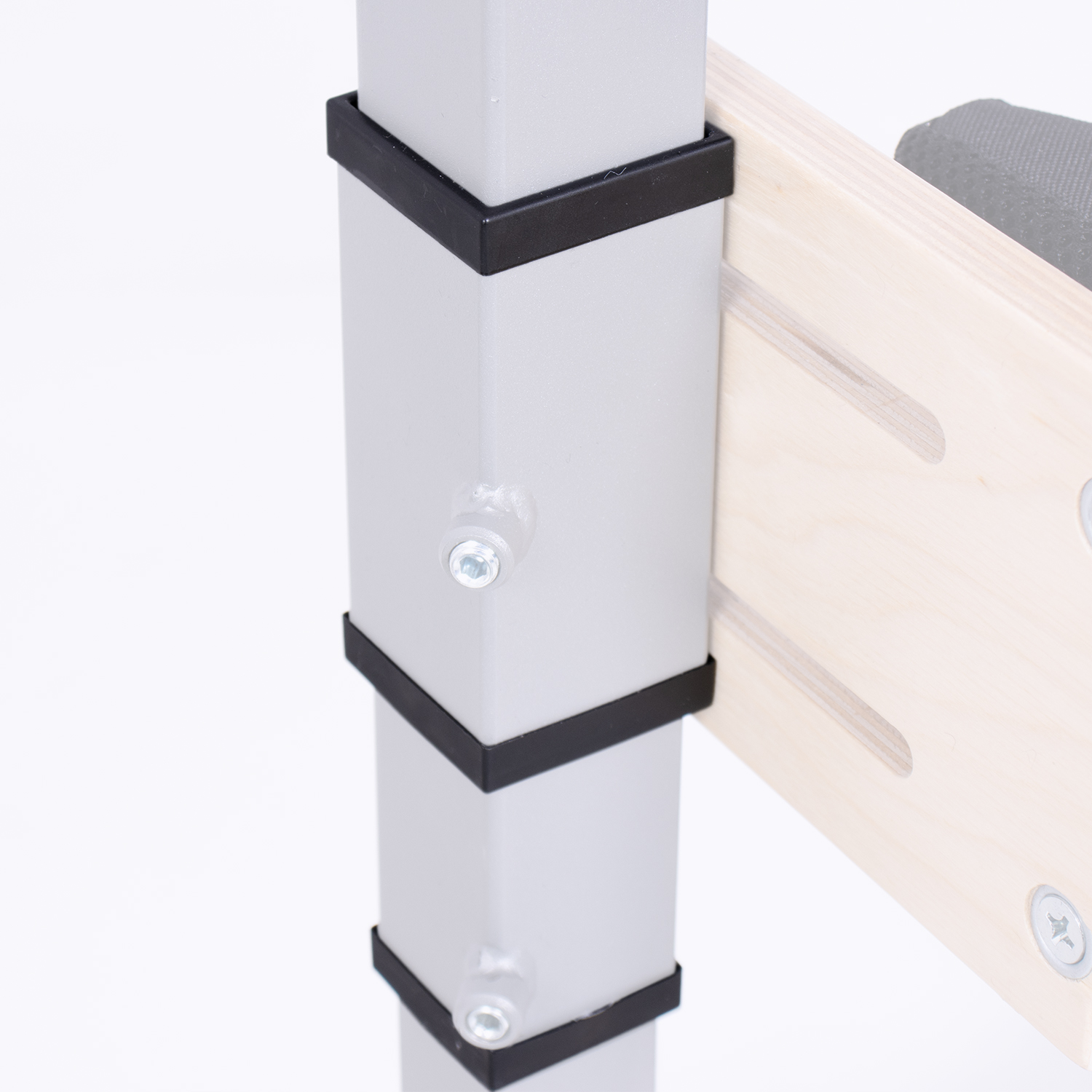

Smooth and stepless adjustment
The product components work together with reduced resistance.
Increased durability
Thanks to the use of smooth and stepless adjustment, the operation of components is much smoother, which translates into minimizing undesired micro-movements of adjustable elements.
Quiet operation
Operation between smoothly adjustable elements is significantly quieter compared to standard solutions.
Easy operation
Intuitive adjustment and simple installation.
Stable construction
The device ensures proper stabilization and user safety.
24-month warranty
We provide a 24-month warranty on the product. We also offer post-warranty service.
Specifications
Available Sizes
| Symbol | Measurement | Unit | Size | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | ||||||
| W | Indicative user height** | [cm] | 50 – 70 | 70 – 100 | 90 – 130 | 110 – 170 | 140 – 200 | |||
| A | Pelvic support width | [cm] | 22 | 28 | 37 | 44 | 44 | |||
| C | Pelvic support height | [cm] | 18 – 44 | 24 – 68 | 28 – 86 | 30 – 107 | 33 – 129 | |||
| A1 | Chest support width | [cm] | 20 | 20 – 26 | 26 – 35 | 35 – 42 | 42 | |||
| C1 | Chest support height | [cm] | 41 – 56 | 56 – 76 | 71 – 98 | 86 – 121 | 106 – 145 | |||
| Pelvic support perimeter | [cm] | 49 – 61 | 61 – 80 | 80 – 105 | 101 – 124 | 101 – 124 | ||||
| Chest support perimeter | [cm] | 50 – 64 | 64 – 76 | 80 – 105 | 95 – 125 | 95 – 125 | ||||
| G | Knee supports width | [cm] | 8 – 10.5 | 11 – 14 | 14 – 20 | 16.5 – 25 | 16.5 – 25 | |||
| H | Knee supports height* | [cm] | 11 – 35 | 12 – 57 | 14 – 78 | 14 – 96 | 14 – 98 | |||
| K | Footer length*** | [cm] | 16 | 19 | 23 | 26 | 26 | |||
| Max. user weight | [kg] | 35 | 55 | 75 | 95 | 95 | ||||
Note: Measurement tolerance range is +/- 1 cm / ½ in.
* Knee supports height depends on tray height.
** This measurement cannot be the main parameter while choosing the product size.

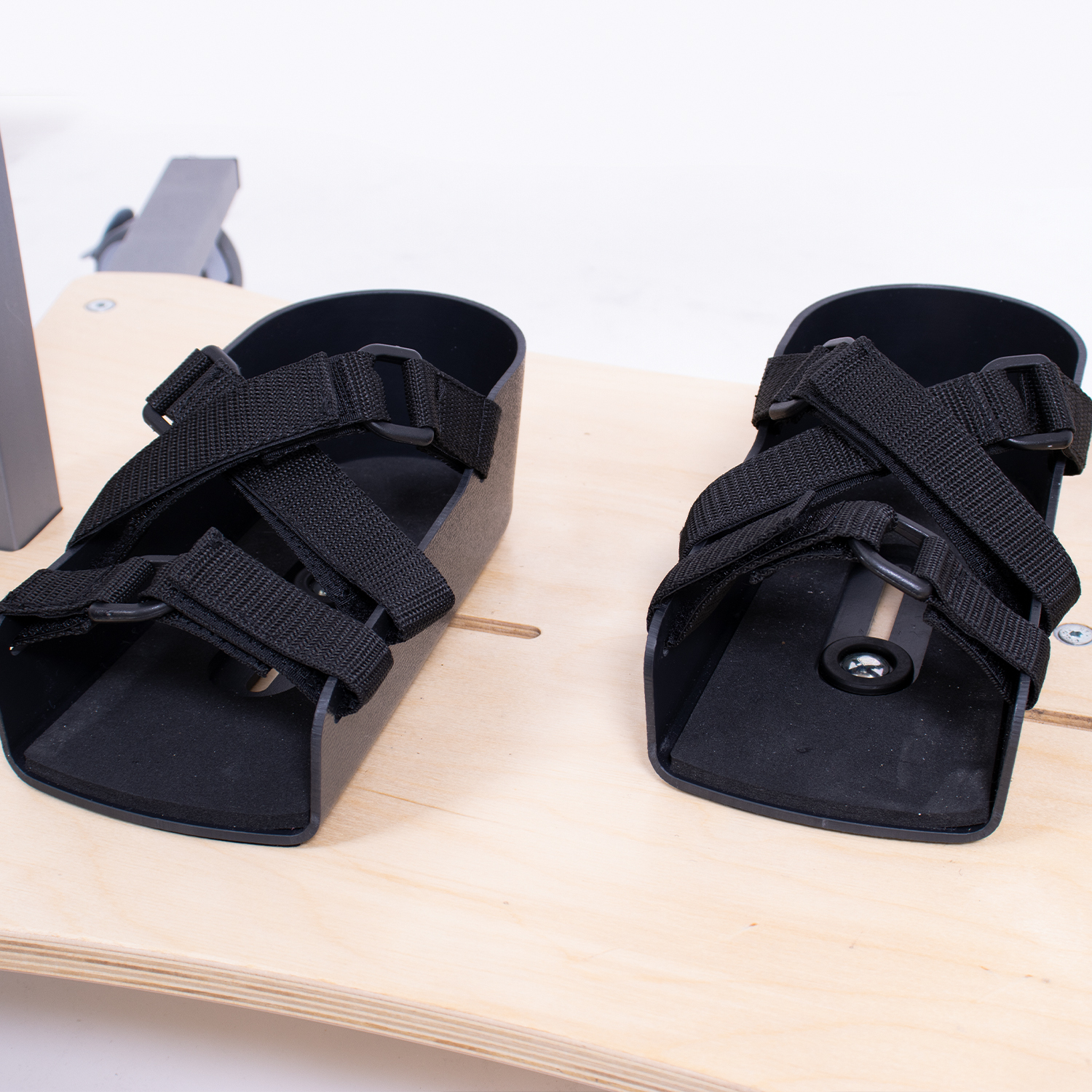

*** There are 7 sizes of footers available. Details below

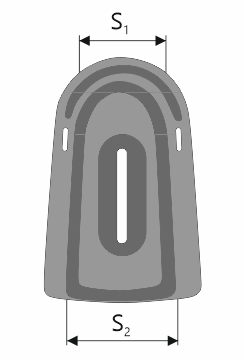

| Footer size | S1 | S2 | |
| XS |  |
7,5 cm | 9 cm |
| S | 7,5 cm | 9,5 cm | |
| 0 | 7,5 cm | 9 cm | |
| 1 | 7,5 cm | 9,5 cm | |
| 2 | 8,5 cm | 10 cm | |
| 3 | 9 cm | 12 cm | |
| 4 | 11 cm | 14,5 cm |
Compatibility Table
 |
 |
||||||
| Standing frame size | Footers size (length) |
||||||
| XS (16 cm) |
S (19 cm) |
0 (16 cm) |
1 (19 cm) |
2 (23 cm) |
3 (26 cm) |
4 (30 cm) |
|
| 1 | ● | + | ✕ | ✕ | ✕ | ✕ | ✕ |
| 2 | + | + | + | ● | + | ✕ | ✕ |
| 3 | + | + | + | + | ● | + | + |
| 4 | + | + | + | + | + | ● | + |
| 5 | + | + | + | + | + | ● | + |
KEY:
● standard equipment
✕ no possibility of assembly
+ SIZES OF FEET THAT ARE STANDARD EQUIPMENT OF THE STANDING FRAME. IT IS POSSIBLE TO CHANGE THE SIZE FOR AN EXTRA FEE WHEN PLACING AN ORDER
Weight & Dimensions
| Measurement | Unit | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|---|
| Width | [cm] | 50 | 60 | 70 | 78 | 78 |
| Length | [cm] | 63 | 70 | 87 | 91 | 91 |
| Height | [cm] | 55 | 75 | 92 | 92 | 110 |
| Weight | [kg] | 10 | 13 | 20 | 24,4 | 26 |
Note: Measurement tolerance range is +/- 1 cm / ½ in.
Note: Approximate values, depending on the product configuration.
