Zing MPS TT Size 2

The Zing MPS TT Size 2 is able to stand in supine, upright and prone without having to transfer the child in and out of the stander to switch between supine or prone standing.

Sales & Hire Enquiry

Description

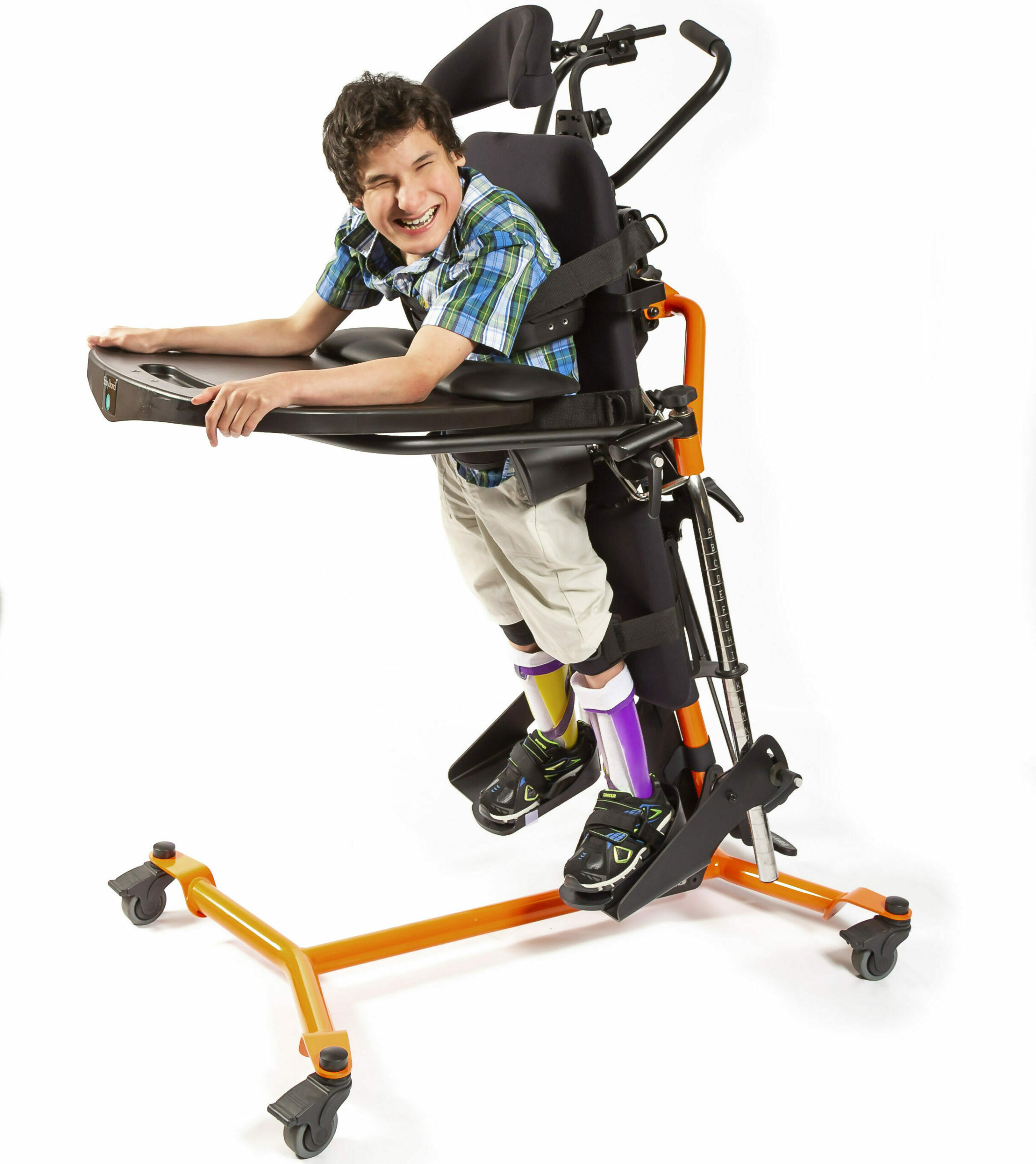

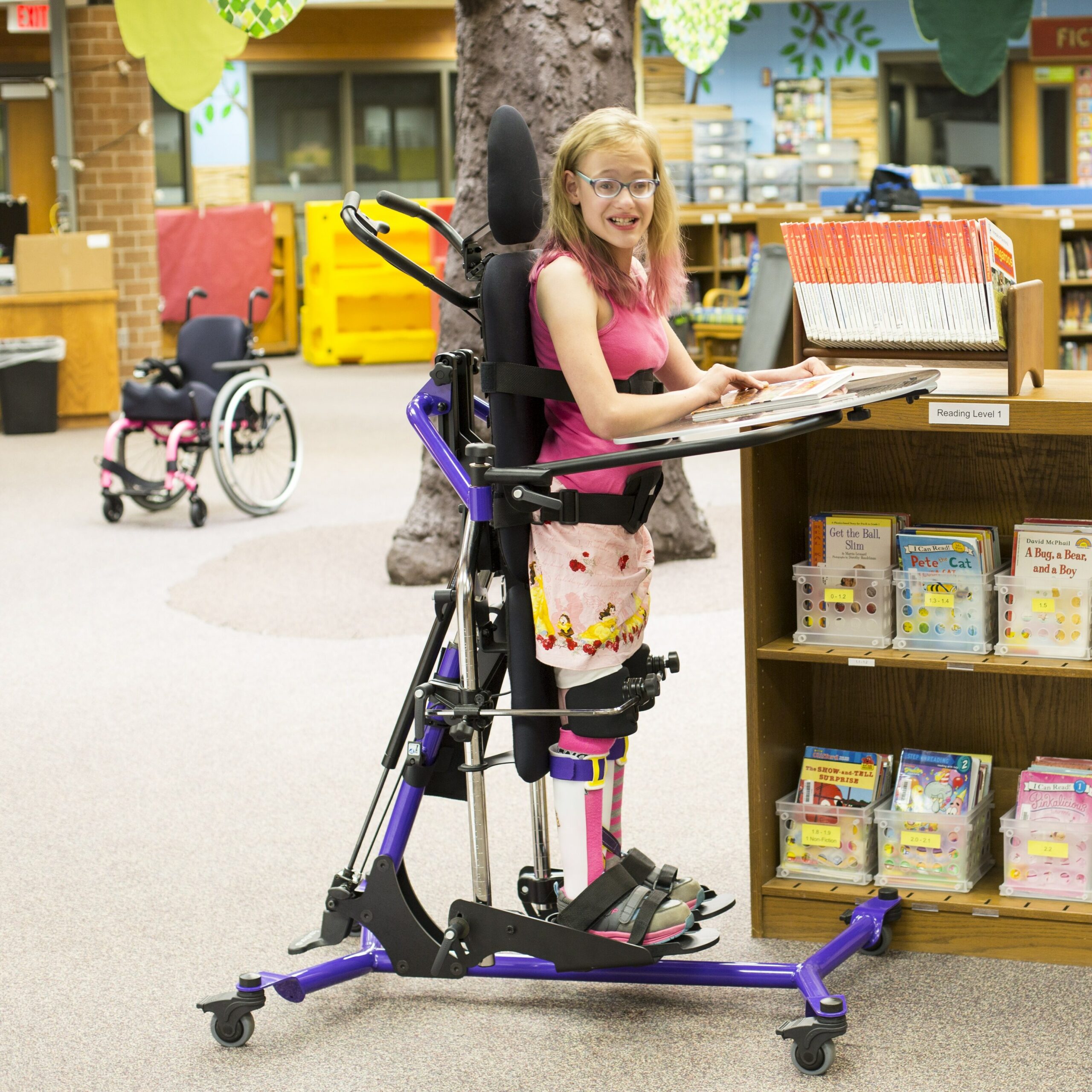

The Zing MPS TT Size 2 is a larger version of the Zing MPS TT Size 1. The Zing MPS TT Size 2 is able to stand in supine, upright and prone without having to transfer the child in and out of the stander to switch between supine or prone standing. The TT (Tilt Table Style Standers) version of the MPS Stander range feature a longer and wider single pad that provides both pelvic and back support.

Available with padded strapping for those who require maximum positioning support. Individual support and positioning components are able to be added when additional support is required.

30 Degrees of Independent Leg Abduction (60 Degrees Bilaterally)

A simple knob allows the leg to abduct up to 30 degree, meaning there is no need to re-adjust foot plates or knee pads.

Unique Lift Mechanisms

The stander base unit has a prone position lockout that prevents inadvertently going past vertical. A gas spring lockout is available to prevent any inadvertent position changes. The dual control enable position changes via foot pedal or hand control.

Swing-away Tray

The multi-adjustable tray can swing in either direction whist still attached to the unit, and can be removed completely. The tray when swung and still attached is conveniently close and within reach once transfer is complete.

Remarkably Modular

With 75 support and positioning components/accessories, the Zing MPS is able to be configured for a range of complex needs. The available components allow the Stander to accommodate contractures on both sides.

Video Demonstration

<span data-mce-type="bookmark" style="display: inline-block; width: 0px; overflow: hidden; line-height: 0;" class="mce_SELRES_start"></span>llscreen<yoastmark class="yoast-text-mark">=”allowfullscreen”><span data-mce-type="bookmark" style="display: inline-block; width: 0px; overflow: hidden; line-height: 0;" class="mce_SELRES_start"></span></yoastmark>

Specifications

Zing MPS Size 2	Item Dimensions
Height Range*	102 to 152 cm
Weight Limit	70 kg
Transfer Height (Horizontal Position)	79 cm
Center of Hip to Footplate Range, Maximum, may invert footplates as necessary	86 cm
Upper Body Support, Vertical Adjustment Range (7 settings)	15 cm
Approximate Equipment Weight of basic unit, in a minimally equipped usable configuration, less most options	37 kg
Approximate Equipment Maximum Weight, Fully optioned unit	66 kg
Frame footprint, Caster-to-caster	68 x 101 cm
Maximum Dimensions	73 x 106 cm
Upholstery	Black nylon/ Neoprene or Molded Urethane
Hygienic Covers	Polyurethane Laminate ECO-PULMultiple Patterns Available
Available Frame Colours	Green, Purple, Orange, or White, Medium Gloss Polyester Powder Coat
Casters and Wheels	8 cm diameter
Lifting Mechanisms Available	Gas Spring
Lift Options, if equipped with Gas Spring	Dual Control (hand lever)Lockout Knob

*Height ranges are approximate, seat depth and seat to footplate measurements are more accurate measurements to determine the correct size standing frame.

Options & Accessories

Options and Accessories	Item Dimensions

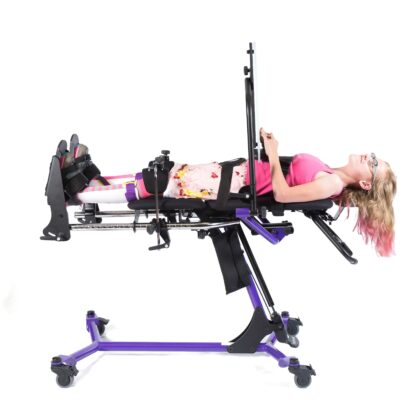

Supine positioning/ Prone-Forward positioning. Supine, MPS, TT	Supine 0-90 degrees/ Prone 0-20 degrees
Positioning, Prone Model	90 (vertical) to 0 (horizontal)
Leg Abduction	Up to 30 degrees per side
Foot straps – length over arch	25 cm, 38 cm, 53 cm,
Secure Foot straps – length over arch	Available in same lengths as regular foot straps
Footplate Options L x W	20 x 8 cm, 25 x 10 cm, 30 x 13 cm
Footplate, platform style	29 x 43 cm
Multi-Adjustable footplates – Plantar/Dorsi	+/- 20 degrees
Multi-Adjustable footplates – Fore/Aft	+/- 2 cm
Multi-Adjustable footplates rotation	30 degrees left/right
One-piece Calf Pad / Leg Rest	44 x 14 cm
One-piece Calf Pad Strap, Fits Approximate circumference	71 to 97 cm
Kneepad Depth Range (from seat plane)	Tight to +18 cm
Kneepad Options, Inside Width	8 cm, 11 cm, 13 cm
Kneepad Dimensions (Height x Outside Width)	10 x 10 cm, 11 x 13 cm, 13 x 15 cm
Multi-Adjustable Kneepads Width Range	Tight to 44 cm
Multi-Adjustable Kneepads Height Range	Infinite from footplate to pelvic pad
Calf (Behind knee) Pad Option	11.5 x 11.5 cm, 14 x 14 cm,
Independent Planar Leg (Calf) Support Tilt Table (TT) Pads (3 Sizes)	23 x 19 cm, 30 x 19 cm, 38 x 19 cm
Independent Planar Leg (Calf) Support Tilt Table (TT) Pad Strap.	48 cm
Table / Tray	Posterior Support Models (Supine, MPS, TT)
Basic Shadow Tray Height Range, referenced from hip pivot:	+10 to +18 cm*
Basic Shadow Tray Fore/Aft range (from posterior pad to chest pad)	1 to 32 cm*
Shadow Tray size Molded/Acrylic	53 x 61 cm*

*Note: Form-to-Fit Upper Body Supports, Lateral Configuration, and Tray Elbow Pads may reduce tray ranges or introduce interferences. A demo or fitting is always recommended when specifying a highly configured product.

Swing Away Tray Height Range, referenced from hip pivot:	+10 to +18 cm
Swing Away Tray Fore/Aft Range (from posterior pad to chest pad)	10 to 41 cm
Swing Away Tray Angle Adjust Range	-90 to +90 Degrees
Chest Pad, Tray Mounted	8 x 20 cm
Elbow (Cutout) Tray Pads – Inside Width	23 cm, 28 cm, 33 cm
Lateral supports Fore/Aft Range	3 cm
Pelvic Support Planar (2 sizes) All Configurations	13 x 18cm, 13 x 23 cm
Hip support pad size	11 x 10 cm
Hip supports width range	18 to 33 cm, 30 x 46 cm
Hip Support, TT, Width Range	25 to 41 cm
Lateral support pad size	10 to 15 cm
Lateral supports width range, Supine & MPS – 2 sizes (4” of adjustment. Ranges vary based on pad width)	18 to 28 cm (11” pad) 25 to 36 cm (11” pad) 23 to 33 cm (13” pad) 30 to 41 cm (13” pad
Lateral Supports w/Elbow Stops and/or Arm Rests, Supine and MPS Only.
Width Range including optional pad holes	25 to 43 cm 30 to 48 cm
Lateral supports, TT, width range	18 to 30 cm 23 to 36 cm
Lateral supports height range	10 cm20 cm (by swapping L/R)
Lateral supports Fore/Aft Range	3 cm
Pelvic Support, Planar and Form-to-Fit (2 Sizes)	25 x 28 cm, 25 x 33 cm
