Molift Quattro Gantry Frame
Molift Quattro Gantry Frame is easily installed without any need for mounting any additional fixtures to walls or ceilings. A safe lifting capacity of up to 300 kg for lifting and transferring from bed, floor, chair, wheelchair and commode.
Description
Molift Quattro Gantry Frame is easily installed without any need for mounting any additional fixtures to walls or ceilings. A safe lifting capacity of up to 300 kg for lifting and transferring from bed, floor, chair, wheelchair and commode.
The Molift Quattro Gantry Frame system consists of an aluminium frame and four steel posts which provide excellent stability and cover the surface of the hoisting requirement, providing access in all lifting situations
Features
- Versatile Solution: Freestanding traverse gantry designed for temporary hoist applications, offering flexibility and ease of setup.
- Quick Installation: Without the need for additional fixtures to walls or ceilings, ensuring convenience and efficiency.
- Robust Construction: Constructed with a sturdy aluminium frame and four steel posts, providing stability and durability during transfers.
Specifications

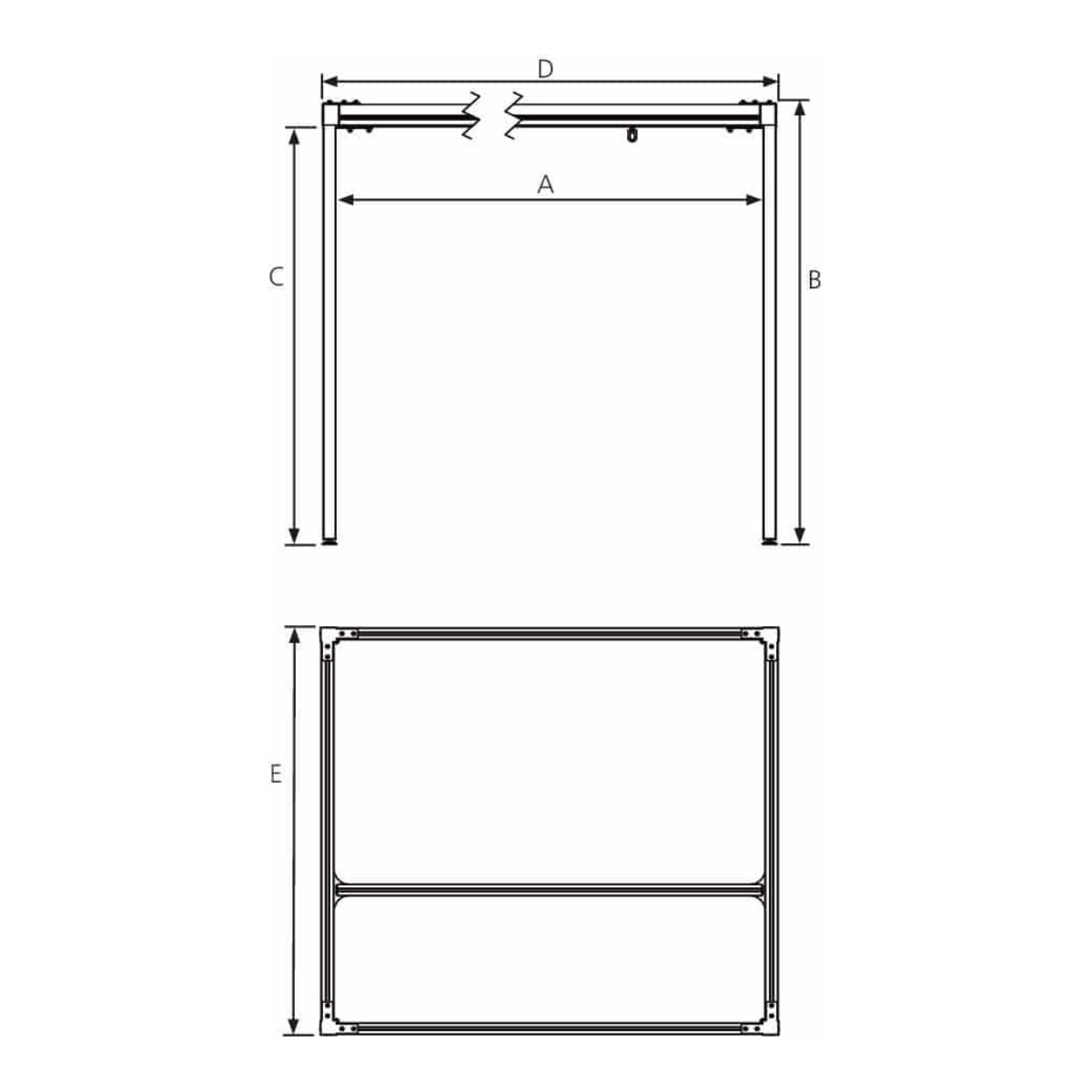

Dimensions
- Height: 2330 mm

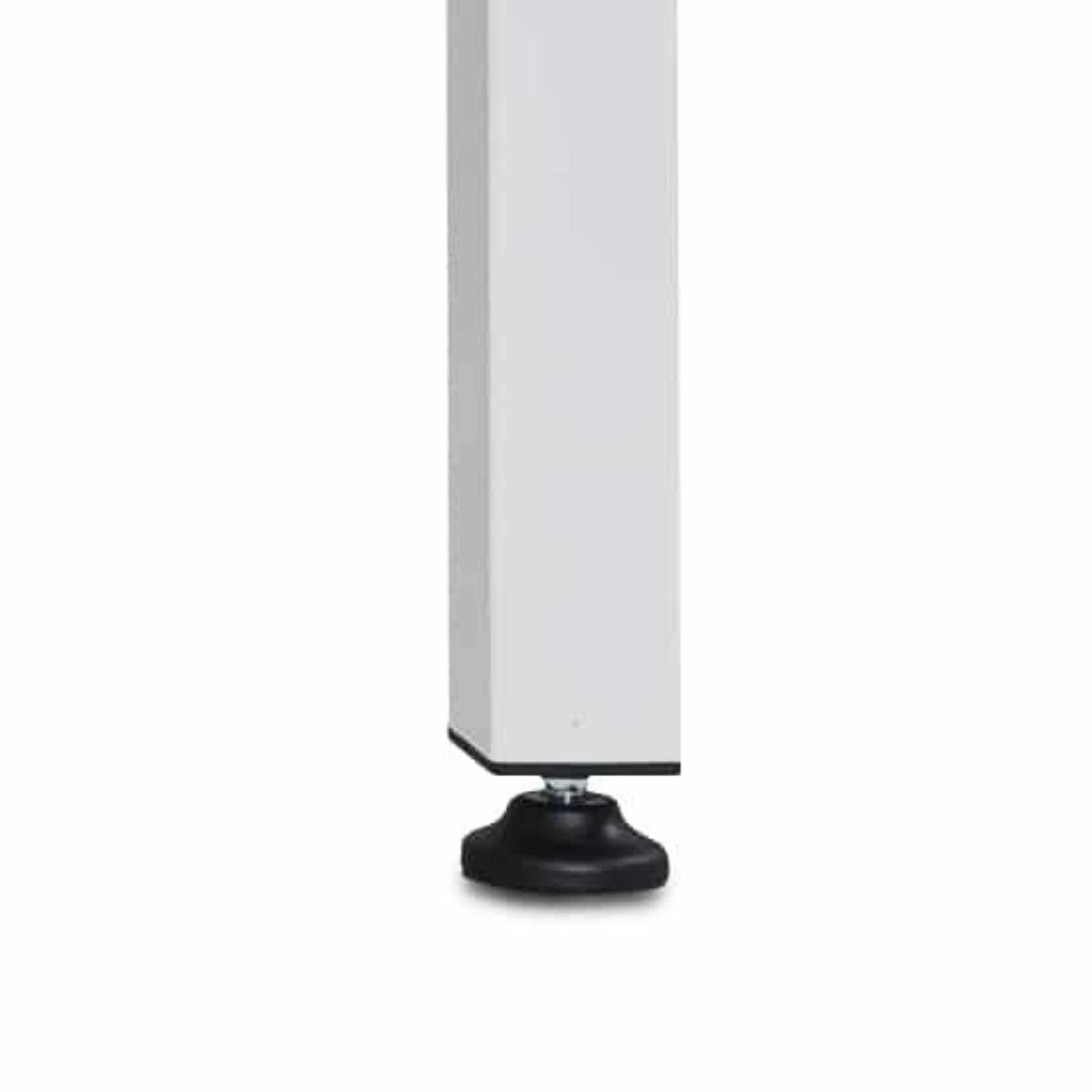

- External height with adjustable feet: 2290 mm (accessory sold separately)
- Material: Steel, anodized aluminum, plastic
Molift Quattro 3
- Rail length: 3000 mm
- Width: 3160 mm
- Depth: 3160 mm
- Unit weight: 111 kg
Molift Quattro 4
- Rail length: 4000 mm
- Width: 4160 mm
- Depth: 4160 mm
- Unit weight: 132 kg
Care Instructions
- Clean the product with a solvent-free cleaning agent with a pH level between 5–9, or with a 70% disinfectant solution
Safety
- Maximum lifting capacity: 300 kg
Brochure
Warranty & Standards
Warranty
- 2 years
- Expected Lifetime: 10 years
Compliance
- ARTG Number: 360015
- Australian Standards: 10535:2006
