ReTurn
ReTurn enables safe and active sit-to-stand and transfer to or from bed, wheelchair or toilet.
Description

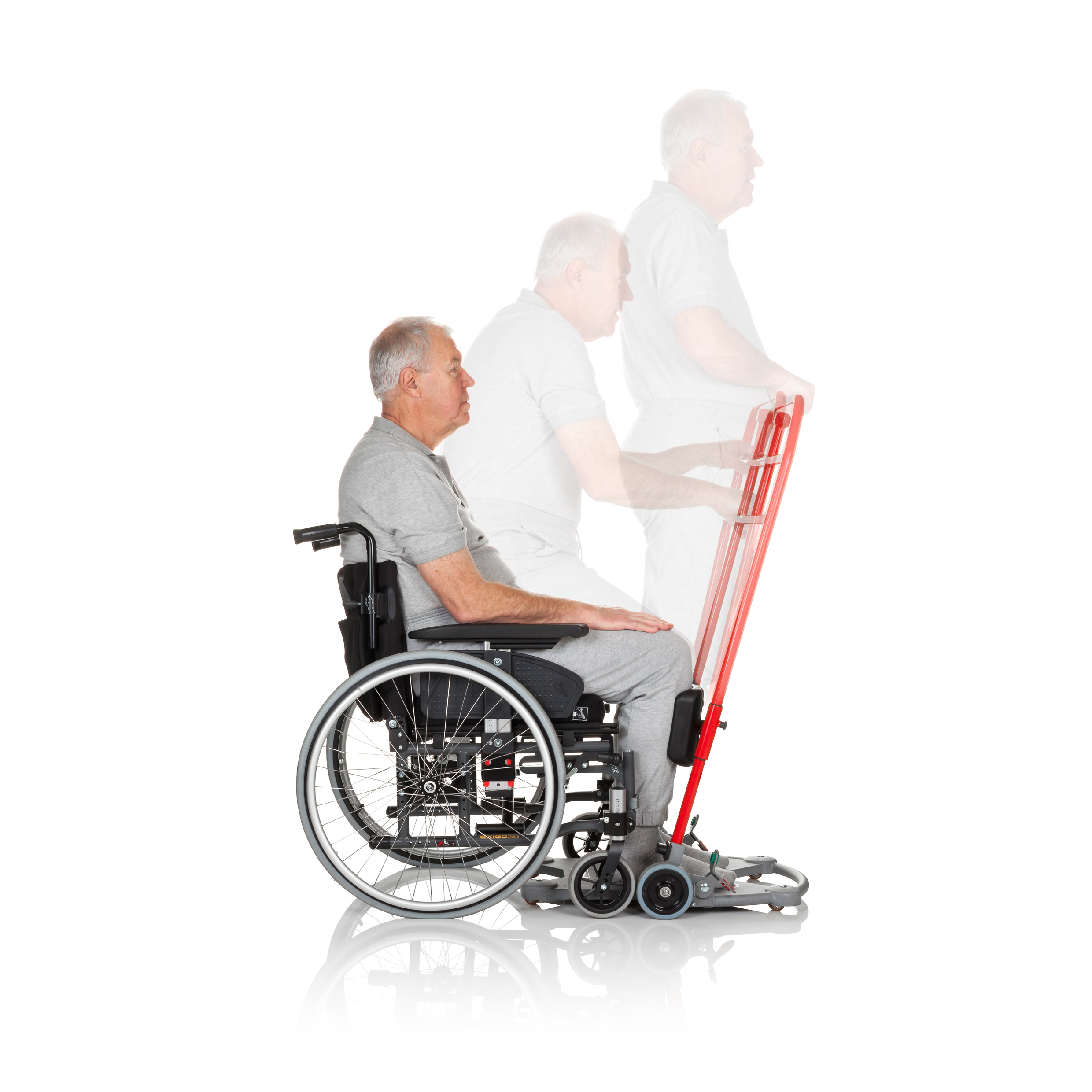

ReTurn is an easy-to-use and incredibly effective assistive device for sit-to-stand and transfer, but it is also a rehabilitation device. ReTurn enables safe and active sit-to-stand and transfers to or from the bed, wheelchair or toilet. ReTurn can also be used to facilitate repositioning farther back in a chair or wheelchair.
For the caregiver, ReTurn enables easy transfers without any heavy lifting – For users who still retain some degree of strength, ReTurn stimulates the natural pattern of movement during sit-to-stand, while at the same time strengthening the muscles and functional ability. This makes it the ideal assistive device in a rehab unit, and a user who uses ReTurn7500 at home can normally live at home longer with the help of only one caregiver.
ReTurn is available in three models, all of them with a unique, patented* design providing for easy maneuvering, even with heavier users and in confined
spaces. They are also easy to assemble and disassemble for easier transport and storage.
Features
ReTurn7500i has a rising ladder of standard height with an opening for quick and easy hooking of the ReTurnBelt for most adult users. Weight capacity 150 kg (330 lbs).
ReTurn7400 has a low rising ladder that is ideal for shorter adults and children as well as in special care situations. Weight capacity 150 kg (330 lbs).
ReTurn7600 has a wider base plate and a higher, rising ladder for larger and heavier users. Weight capacity 205 kg (450 lbs).
- Unique, patented design that makes the transfer platform incredibly easy to maneuver.
- Rolls, turns and pivots smoothly and easily on all surfaces, even in confined spaces with lockable wheels.
- Easy to understand and use for the user and the caregiver.
- Many different application areas, easily adapted for a variety of users and always close at hand.
- Activates the user and eliminates heavy lifting for the caregiver.
- Stable and secure base plate with a low step-in height and clear markings for the user’s feet.
- Base plate’s narrower rear profile enables it to be moved in under a wheelchair for close positioning to the user.
- A recess, for the toilet, makes it possible for the user to get close enough to achieve a good seated position.
- The rising ladder incline gives the ability for a natural pattern of movement.
- Design enables the caregiver to remain close and help to support the user from different directions.
- Rising ladder offers many possibilities for grasping the ladder, including a central “power grip,” which can enable “climbing”.
- User is supported by the ladder during standing training and transfer.
- Height, width and angle of the user-adapted, lower-leg supports can easily be adjusted to fit different users.
- Easy to assemble and disassemble for transport and storage.
Specifications
| Technical data | ReTurn7500 | ReTurn7400 | ReTurn7600 |
|---|---|---|---|
| Safe Working Load | 150 kg (330 lb) | 150 kg (330 lb) | 205 kg (450 lb) |
| Dimensions (L x W x H) | Length, outer dimensions, base plate: 685 mm (26.97 in).
Width, outer dimensions: 570 mm (22.44 in). Overall Height: 1150 mm (45.28 in). Height, base plate: 40 mm (1.57 in) |
Length, outer dimensions, base plate: 685 mm (26.97 in).
Width, outer dimensions: 570 mm (22.44 in). Overall Height: 995 mm (39.17 in). Height, base plate: 40 mm (1.57 in) |
Length, outer dimensions, base plate: 795 mm (31.30 in).
Width, outer dimensions: 672 mm (26.46 in). Overall Height: 1210 mm (47.64 in). Height, base plate: 45 mm (1.77 in) |
| Weight | 16.5 kg (36.38 lb) | 16.5 kg (36.38 lb) | 26 kg (57.32 lb) |
| Castor Size | 4 pcs, 35 mm (1.38 in), outer diameter | 4 pcs, 35 mm (1.38 in), outer diameter | 4 pcs, 75 mm (2.95 in), outer diameter |
| Center Wheels | 2 pcs, 125 mm (4.92 in), outer diameter | 2 pcs, 125 mm (4.92 in), outer diameter | 2 pcs, 125 mm (4.92 in), outer diameter |
| Rising Ladder | Exchangeable: standard, 7501i Alternative: 7501, 7401 |
Exchangeable: standard, 7401 Alternative: 7501, 7501i |
Exchangeable: N/A Alternative: N/A |
Accessories

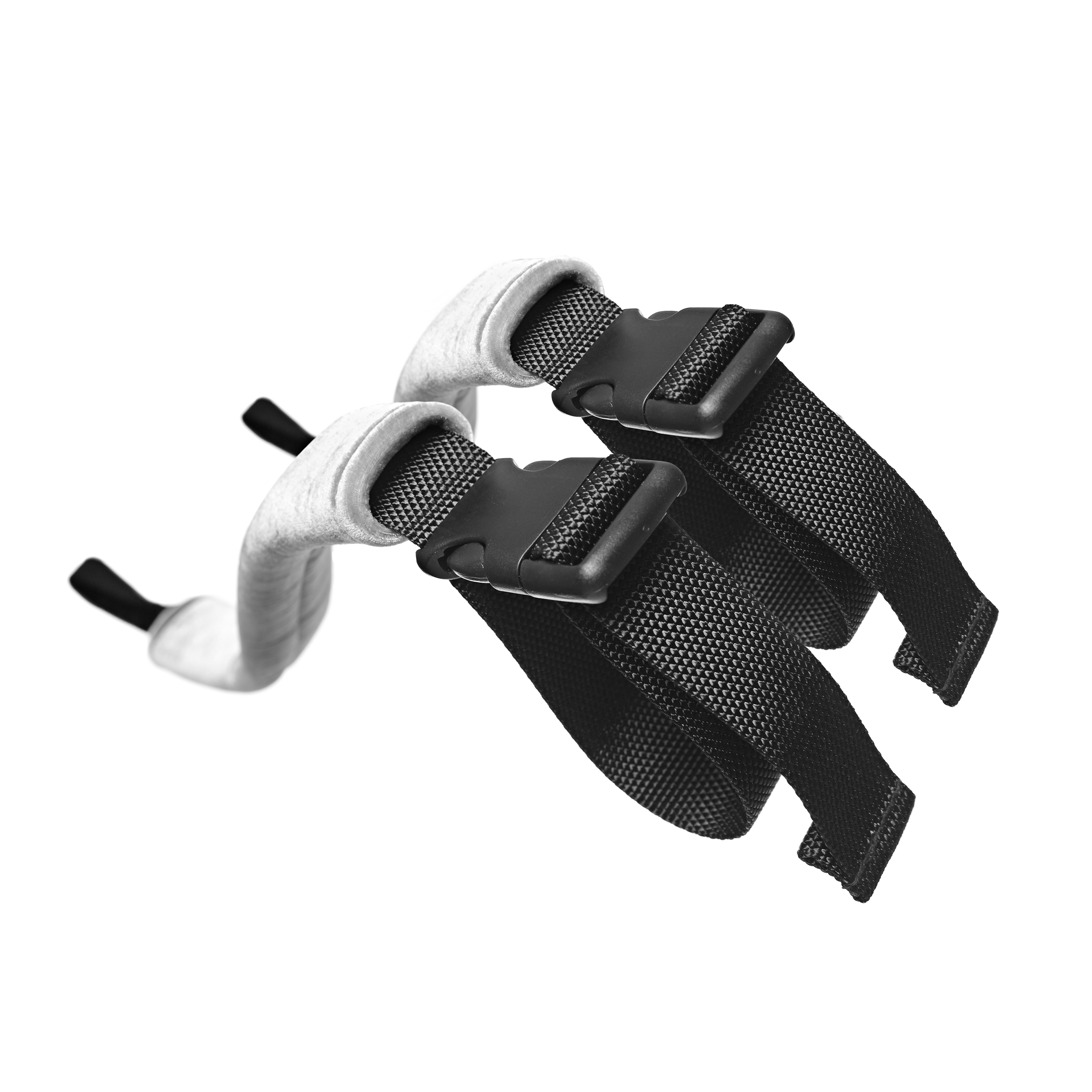

Support Straps
SupportStraps is a multi-functional accessory providing extra support and security for users during standing, gait training and transfers with SystemRoMedic™ belts, sit-to-stand aids and transfer platforms.
SupportStraps consist of two separate straps, each with a loop on one end and a plastic clasp on the other end. Removable, padded cases relieve the pressure when the straps are used as leg harness.

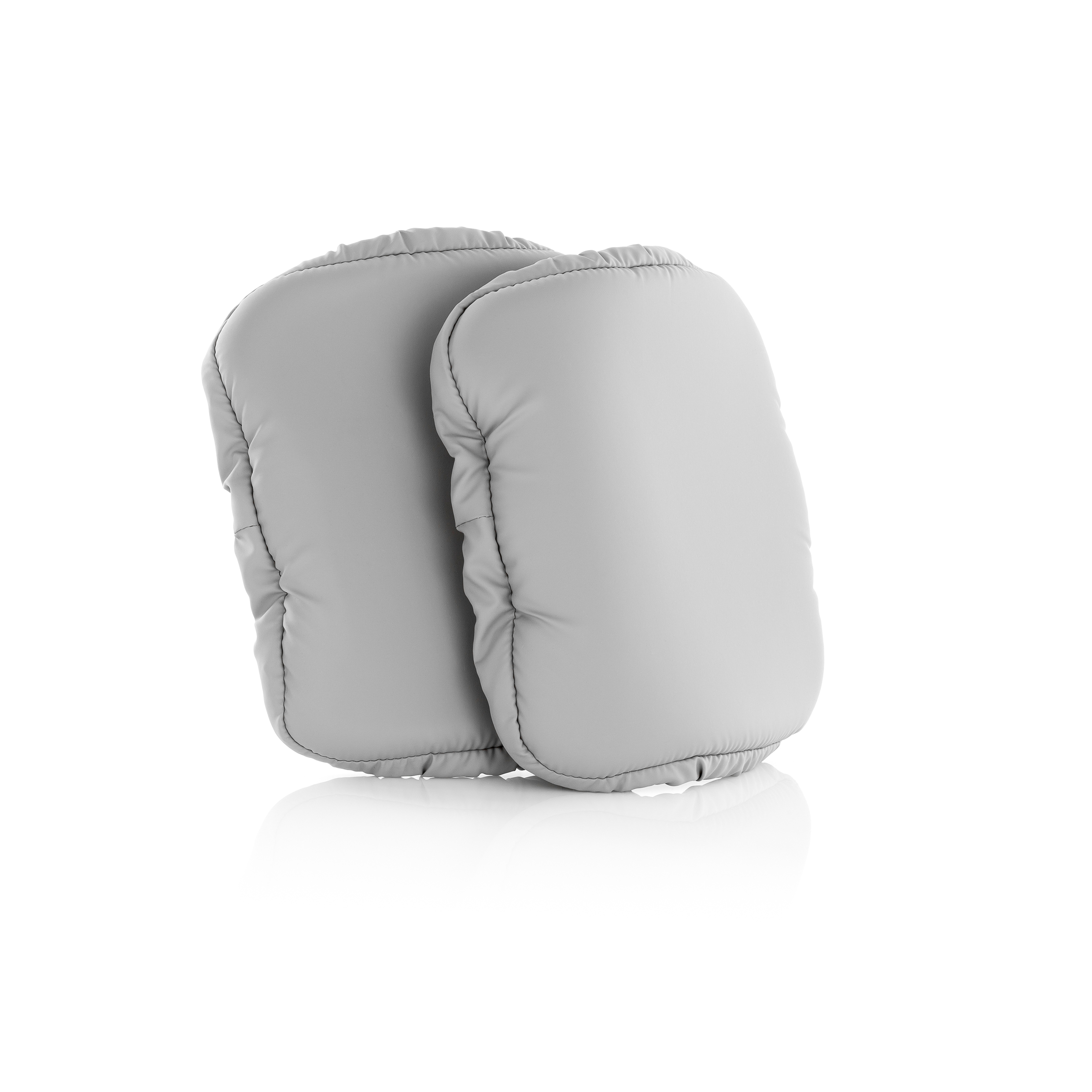

Padding for Leg Support
Padding for leg support is an accessory making the lower-leg supports more comfortable for pain-sensitive users. The lower-leg supports on ReTurn7500i are equipped with extra padding as standard.
Practical Bag
A specially designed and durable bag facilitates transport and storage while at the same time protecting ReTurn from dirt and scratches.
Heel Strap
HeelStrap is an accessory that is used to support the user’s heels during sit-to-stand and transfer with Handicare’s SystemRoMedic™ transfer platforms ReTurn7500i and ReTurn7400. The heelStrap effectively prevents the feet from sliding back during sit-to-stand, ensuring greater safety and security for the user.
HeelStrap is easily connected, with the help of the strap’s snap hooks, to a special mount on the base plate. After adjusting the length to fit the user, the strap is easily attached and is held effectively in place against the user’s heels by the anti-slip material on the inside
ReTurn Belt
Compensates for weak legs and provides extra support.
