IC333 Home Care Bed
Premium home care bed.
Description
The IC333 Premium Home Care Bed is unmatched for function and durability, taking the hospital look out of your room. This four function bed, features dual lift motors totalling 12,000 newtons lifting power, unlimited under-bed clearance and eight heavy duty castors. Now available in Vinyl options as well. Please enquire for more information.
Codes & Sizes
LONG SINGLE
Code: IC333LS
Mattress Surface Size: 2030 x 900
Base Size: 2150 x 960
KING SINGLE
Code: IC333KS
Mattress Surface Size: 2030 x 1070
Base Size: 2150 x 1120
LONG DOUBLE
Code: IC333D
Mattress Surface Size: 2030 x 1350
Base Size: 2150 x 1400
One hand control
QUEEN
Code: IC333Q
Mattress Surface Size: 2030 x 1500
Base Size: 2150 x 1580
One hand control
Features
Specifications
- Safe working load – 200kg on long single and king single sizes and 300kg for double and queen sizes. The safe working load includes any model of Icare mattresses.
- Hand Piece – Backlit for night time use. Easy press buttons. Wired stretch cord. Hook attachment for hanging to side of bed. Wipeable.
- Fabric – Hard wearing commercial grade fabric. Onyx range (BLACK) 82% Polyester, 18% Olefin. Stone range (GREY) 70% Polyester, 30% Acrylic.
- Mattress Surface – Strong metal mesh under mattress allowing increased airflow
- Actuators – 1x 6000 newton – 24 watt head adjust actuator. 1x 6000 newton – 24 watt knee adjust actuator. 2x 6000 newton – 24 watt height adjust actuators (2x 8000 newton on double and queen sizes)
- No pull motors for added safety.
- Wheels – 8x heavy duty swivel castors with one lockable castor on each corner.
- Head lift angle 62º and knee break angle 42º
- Max height – 66cm from floor to top of base
- Min height – 22cm from floor to top of base
Accessories

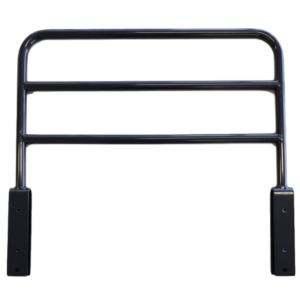

Low Side Safety Rail
 | Low Side Safety RailThe three low side safety rail provides user support and stability, preventing bed falls. Sizing = Width of 690 mm x Height of 422 mm (height above mattress platform).
|
High Side Grab Rail
 | High Side Grab RailThe four high side grab rail provides user support and stability, especially for getting in and out of bed. Sizing = Width of 350 mm x Height of 582 mm (height above mattress platform).
|

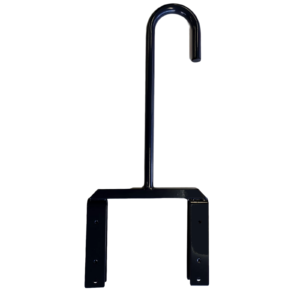

Bed Stick with Safety Return
 | Bed Stick with Safety ReturnThe bedside assistance rail suports patients transfers getting in and out of bed; and can be used for patient repositioning. Sizing = Height of 520 mm (height above mattress platform), 103 mm inside hook.
|

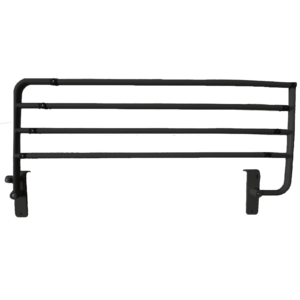

Full Length Bed Rail
 | Full Length Bed RailThe fold down bed rails are available in left and right hand side to provide user support and stability, preventing bed falls. Sizing = Width of 1385 mm x Height of 495 mm (height above mattress platform), 80 mm space between rails.
|
Over Bed Pole
 | Over Bed PoleThe free standing over bed pole is a pull up bar to help with turning, patient transfers and bed care. Built with a stable design and heavy duty steel. Sizing = Height (from floor to top of the rail) 190 cm, Width (under bed) 75 cm, Length (under bed) 90 cm, rail at top from back of stand to tip of rail 71 cm.
|
Colours
Onyx
Stone
Vinyl Ebony
Vinyl Dove
Functions
