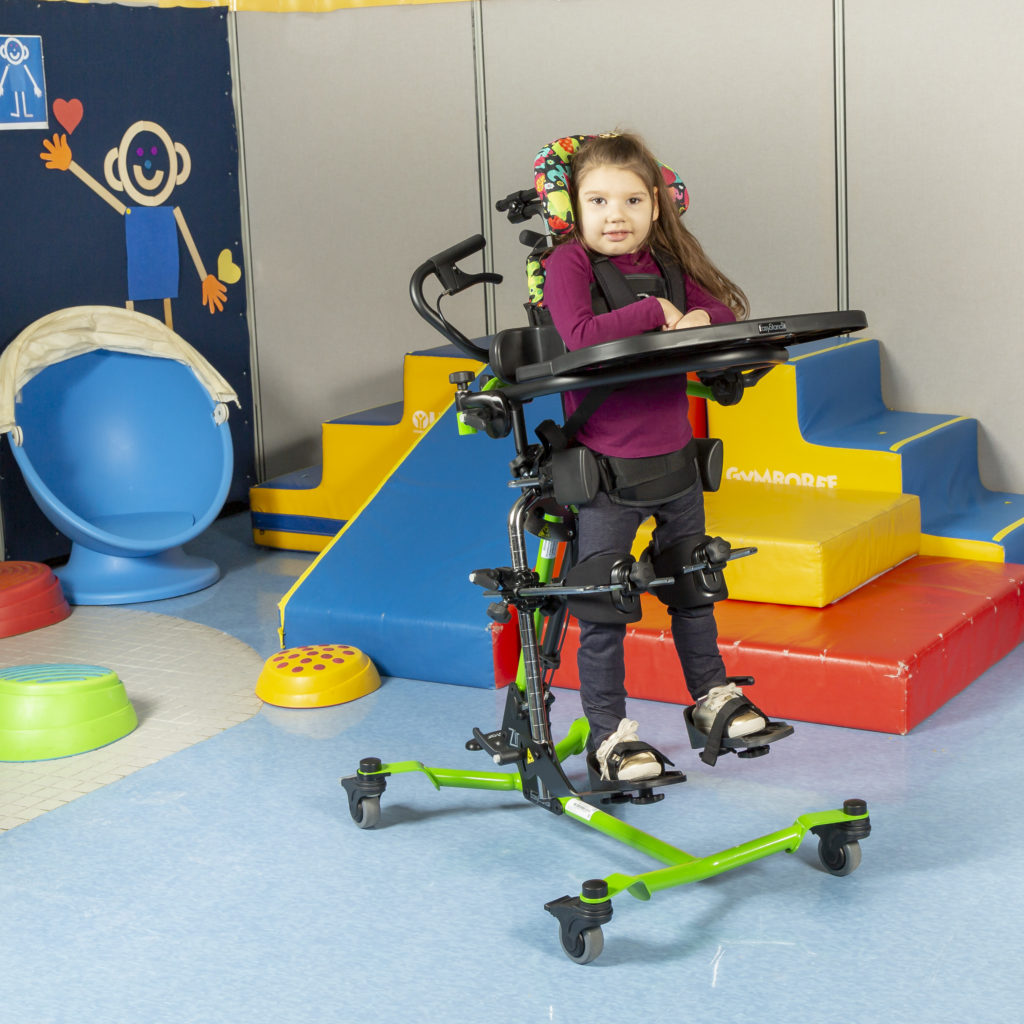

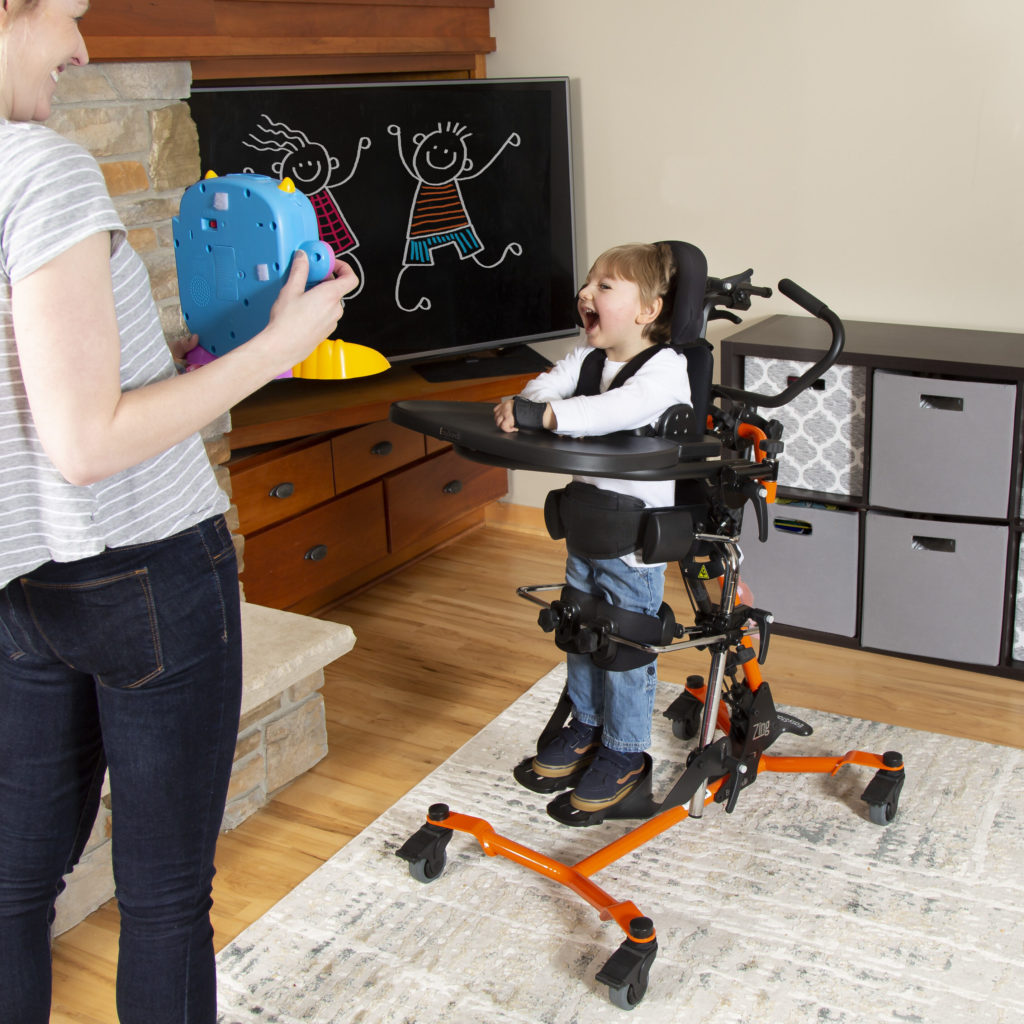

Zing Supine Size 1

The Zing Supine Stander provides positioning opportunities from from flat-to-load supine to vertical. The Zing Supine Stander is also allows up 30 degrees of independent leg abduction.

Sales & Hire Enquiry

Description

The Zing Supine Stander provides positioning opportunities from from flat-to-load supine to vertical. This stander has all the features, positioning and support components of the Zing MPS minus the ability to go into prone positioning. The Zing Supine Stander is also allows up 30 degrees of independent leg abduction.

30 degrees of independent leg abduction (60 degrees bilaterally)

There is no need to re-adjust the foot plates or knee pads to change the degree of leg abduction. A simple knob feature allows the entire leg to abduct up to 30 degrees.

Unique Lift Mechanisms

To help prevent any inadvertent position changes, a gas spring lift lockout is available. The Dual Control enables position changes by foot pedal or hand control.

Swing-away Tray

Featuring a multi-adjustable tray can swing in either direction and still remain attached to the unit. The swing ability of the tray allows it to be out of the way for transfer, however still close to the user once transfer is complete. The tray can also be removed completely.

Remarkably Modular

This stander feature 75 support and positioning components/accessories. Configuration of the stander can go from a simple stander to support more complex needs. The Zing Supine is able to accommodate contractures on one or both sides.

Specifications

Zing MPS Size 1	Item Dimensions
Height Range*	up to 112 cm
Weight Limit	32 kg
Transfer Height (Horizontal Position)	81 cm
Center of Pelvic Support to Footplate Range, may invert footplates as necessary	18 – 56 cm
Upper Body Support Height Range	10 cm
Kneepad Depth Range	13 cm
Kneepad Inside Width	6 cm, 8 cm, 11 cm, 13 cm
Kneepad Dimensions	9 x 10 cm, 10 x 10 cm, 11 x 13 cm, 13 x 15 cm,
Multi-Adjustable Knee pads Width Range, Center-to-center	10 – 23 cm, 11 – 23 cm, 13 – 20 cm, 15 – 18 cm,
Multi-Adjustable Knee pads Height Range	2 cm
Weight of basic unit	25 kg
Frame footprint, Caster-to-caster	51 x 71 cm
Maximum Dimensions	55 x 75 cm
Upholstery	Black nylon/Neoprene or Molded Urethane
Hygienic Covers	Polyurethane Laminate ECO-PUL
Frame Colour	Green, Purple, Orange, or White
Casters and Wheels	8 cm Diameter
Lifting mechanisms Available	Gas Spring
Lift Options	Dual Control (hand lever) Lockout Knob

*Height ranges are approximate, seat depth and seat to footplate measurements are more accurate measurements to determine the correct size standing frame.

Options & Accessories

Options and Accessories	Item Dimensions
Supine positioning/ Prone-Forward positioning. Supine, MPS, TT	Supine 0-90 degrees/ Prone 0-20 degrees
Positioning, Prone Model	90 (vertical) to 0 (horizontal)
Positioning, Vertical Model	90 (vertical) only. Fixed position.
Leg Abduction	30 degrees per side
Foot straps extra small – length over arch	20 cm, 25 cm
Secure Foot straps – length over arch	Available in same lengths as regular foot straps
Footplate Options LxW	15 cm(L) x 8 cm(W), 20 cm(L) x 9 cm(W), 25 cm(L) x 11 cm(W),
Footplate, Platform Style	20 cm(L) x 30 cm(W)
Multi-Adjustable footplates – Plantar/Dorsi	+/- 20 degrees
Multi-Adjustable footplates – Fore/Aft	+/- 2 cm
Multi-Adjustable footplates rotation	30 degrees left/right
Upper Body/Pelvic Tilt Table (TT) Pads – 3 sizes	36 x 36 cm, 41 x 36 cm, 46 x 36 cm
Single Calf Pad/Leg Rest	10 x 34 cm
Single Calf Pad Strap, Fits circumference	61 cm
Calf (Behind knee) Pad Option, Extra Small Pad Size, Small Pad Size, Fore/Aft Adjustment from seat plane	9 x 9 cm 11.5 x 11.5 cm -2.5 to +10 cm
Independent Planar Leg (Calf) Support Tilt Table (TT) Pads – 3 sizes	10 x 15 cm 15 x 15 cm 20 x 15 cm
Independent Planar Leg (Calf) Support Tilt Table (TT) Pad Strap – Fits circumference:	38 cm
Table Mount and Tray Options/Specs	Posterior Support Models (Supine, MPS, TT)
Shadow Tray size – Molded/Acrylic	28 cm x 48 cm
Shadow Tray height Range	8 cm
Shadow Tray Fore/Aft Range (from posterior pad to chest pad)	0–25 cm
Swing-Away Tray size – Molded/Acrylic	28 x 48 cm
Swing Away Tray Height Range	8 cm
Swing-Away Tray Fore/Aft Range (from posterior pad to chest pad)	10 to 23 cm
Swing-Away Tray Angle Adjust Range	+40 degree inclines to -90 degrees (parallel to user when standing or in supine mode)

Upholstery/Positioning Options/Specs	Item Dimensions
Hip support pad size	9 x 9 cm
Hip supports width range	15 – 25 cm
Lateral support pad size	9 x 9 cm
Lateral supports width range	18 – 28 cm
Lateral supports height range	9 cm
Lateral supports Fore/Aft Range	3 cm
Pelvic Support Planar (2 sizes) All Configurations	13 x 18cm, 13 x 23 cm
Pelvic Support, Form-to-Fit (2 sizes) Posterior support (Supine, MPS, TT)	13 x 18 cm, 13 x 23 cm
Pelvic Support Form-to-Fit (2 sizes) Anterior Support (Prone and Vertical)	13 x 25 cm, 13 x 30 cm
Upper Body Support Planar	13 x 13 cm, 13 x 18 cm, 13 x 23 cm, 18 x 18 cm, 18 x 23 cm
Upper Body Support Form-to-Fit	13 x 25 cm, 13 x 30 cm, 18 x 25 cm, 18 x 30 cm
Upper Body/Pelvic Tilt Table (TT) Pads – 3 sizes	36 x 36 cm, 41 x 36 cm, 46 x 36 cm
Chest Pad	8 x 20 cm
Chest Strap (pad size)	13 x 20 cm
Chest Strap (approximate user circumference)	Up to approx. 61 cm
Chest vest – X-Style	38 cm
Table Mount and Tray Options/Specs	24 x 23 cm
Chest vest – X-Style	28 x 24 cm

Posterior Head Supports (Supine, MPS, TT)	Item Dimensions
Head support height range. (From top of upper body pad)	20 cm
Head support depth range – from backrest	-6 to +4 cm
Head Support Size Extra-Small	13 cm(H) x 20 cm(W)
Head Support Size Small	15 cm(H) x 25 cm(W)
Flat Headrest	13 x 18 cm
Form-to-Fit Head Support – Height, Width, variable up to approximately:	13 x 25 cm
TT Planar Head Support	20 cm(H) x 22 cm(W)

Anterior Head Supports (Prone, Vertical)	Item Dimensions
Face Aperture	8 x 23 cm
Positioning belt – hip circumference	Up to approx.. 61 cm
Configurations Available:
Supine	Posterior Support Pads
MPS (Multi-positional Stander, w/Prone Forward)
TT (Tilt Table, larger upholstery surfaces)
Prone	Anterior Support Pads
Vertical (fixed position, no lift options available)
