RAZ Design AT Shower Chair

Adjustable Heel Loops

Soft, adjustable webbing with a secure closure keeps the feet safely positioned, preventing rearward migration on the footrests.

Arm Support Space Kit

Adds 1″ (2.5cm) or 2″ (5cm) of width between armrests for increased seating space. When combined with a custom wide seat, it accommodates  larger clients without requiring a custom wide frame. Retains armrest flip-up functionality with lateral supports in place. Exclusive to Adjust-Backs.

Pivoting Arm Mount

Enables arm troughs and flat arm pads to pivot outward, creating the necessary clearance for armrests to flip up and lateral supports to swing away seamlessly.

Arm Trough

Designed to maintain optimal arm positioning, particularly when the chair is tilted. The integrated triple-slotted mounting track offers comprehensive fore/aft, medial/lateral, and rotational adjustability, while a rear drain hole ensures easy moisture management.

Pivoting Hand Grips

Providing additional comfort, the pivoting hand grips offer stability and support. The 3-position grip can assist weight shifting and transfers.

These are available on all standard weight Raz chairs.

Bodypoint Aeromesh Calf Panel

Adjustable, soft 9″ (23cm)-high panel with “velcro” closure provides comfortable leg positioning.

Bodypoint Aeromeash Calf Strap

Snap on/off calf strap, easy installation and removal. Available in 5 lengths to fit frame widths of 16” (40.5cm), 18” (46cm), 20” (51cm), 22” (56cm) and 24” (61cm).

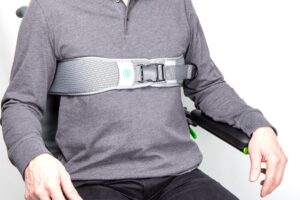

Bodypoint Aeromesh Shower Chair Chest Belt

Featuring a quick-drying, padded strap and a secure plastic side-release buckle, this belt offers exceptional client comfort.

⚠️ Clinical Safety Note: Chest belts must always be used in conjunction with a pelvic belt.

Commode Pan

The Commode Pan features an ergonomic design with an angled grip, an anti-splash ridge, and an angled front that keeps contents centered for safer, easier handling. Bright green pan guides offer high visibility to ensure effortless insertion.

Custom Seats

Custom design and fabricate the seat to fully accommodate a client’s specific needs.

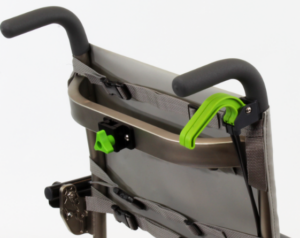

Dual Triggers

For tilt-only or recline-only chairs, both triggers can be positioned on either the left or right side.

Elevation Leg Supports

Features an adjustable-angle/depth footplate and a recessed calf pad.

• Leg Length Adjustment: Accommodates 16″ to 20.5″ (40.5cm – 52cm)

• Seat Depth Compatibility: Forward-offset version available for deeper seats.

Flip-Back Footrest

Compact, one-piece footplate enhances overall manoeuvrability, while its flip-back design ensures seamless, unobstructed client transfers. Fully adjustable to accommodate lower leg lengths from 16″ (40.5cm) to 20.5″ (52cm).

Flip-Up Padded Armrest

13” and 10” lengths to fit standard and short arms respectively

Flip Support Extension Tubes

Extends foot support / leg support adjustment range by 2″ (5cm) (shown on the right in the image)

Casters

• Total-Lock Castors: Dual-locking design simultaneously locks both swivel and roll for maximum stability and security during transfers.

• Standard Sizing: 5″ castors come standard on all models except the heavy-duty Raz-AT600, which features 6″ castors as standard.

• Optional Upgrades: 4″ and 6″ castor options are available on select models to suit specific user needs.

Anterior Postural Support Bar

The Anterior Postural Support Bar enhances client comfort, stability, and security while actively assisting with weight shifts. This padded aluminium bar secures firmly into place using moulded rubber hold-downs, allowing for effortless installation and removal. It is compatible with Raz chairs featuring standard arm pads and back widths from 14″ to 30″.

⚠️ Configuration Note: The use of arm spacers will affect the required bar size.

H-Strap

• Hook and loop fastener

• For 18”W frame

Hip Adductors

Provide firm, lateral support for the hips and can be easily removed for transfers.

Infection Control Calf Strap

• Easily snaps on and off

• Fits frame widths from 14″-30

Infection Control Chest Belt

• Advanced Infection Control: A durable vinyl coating completely encases the weave, preventing pathogens and fluids from being absorbed or trapped within the belt material.

• Streamlined Design: Features a one-piece wrap-around belt equipped with a secure, side-release buckle.

Leg Adductor

Provides firm lateral thigh support. Easily removed for transfers.

Available for tilt and non tilt chairs.

Medial Thigh Support (Pommel)

• Unique width- and angle-adjustable design

• Removable

• Fits AT/CAT/AT600

MFX-12 Foot Supports

Adjustable for lower leg lengths from 12″ (30.5cm) to 16″ (40.5cm)

MFX-8 Foot Supports

Adjustable for lower leg lengths from 8″ (21cm) to 12″ (30.5cm).

Molded Flat Armpad

Provides a wide surface for improved user arm support. Adjustable fore/aft and angle position.

Available in 2 size:

Long: 3.25″W x 14″L (9cm x 35cm)

Short: 3”W x 10″L (7.5cm x 25.5cm)

Molded Head Support Large & Standard Size

Larger size (6″ x 10″) (15cm x 25.5cm) optional.

Small size (4″ x 10″) (10cm x 25.5cm) standard with tilt chairs.

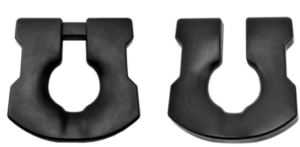

Standard Moulded Seats

Moulded contours offer exceptional pelvic stability while maximising surface contact for optimal comfort and pressure distribution. Advanced moulding technology delivers superior softness paired with long-lasting durability. Available in four configurations: 16″ (40.5cm) or 19″ (48.5cm) depths, with either an open or bridged front.

Small size (4″ x 10″) (10cm x 25.5cm) standard with tilt chairs.

Neoprene Footplate Cover

Soft footplate cover adds a layer of protective cushioning for sensitive feet. It is fully compatible with both standard and adjustable-angle/depth footplates.

Angle/Depth-Adjustable Footplates

Angle/Depth-Adjustable Footplates – single screw adjustment for:

• Plantar/dorsi-flexion
• Fore/aft adjustment range of 4”

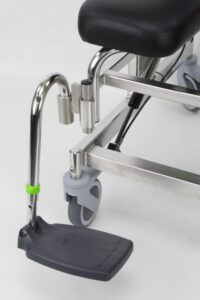

Offset Foot Support Receiver

Allows foot and leg supports to be positioned 2” laterally or medially.

Commode Pan Spacer Kits

Lowers the pan 1”, 2”, 3” or 4”. Allows for digital stim and selfcare with the pan in place.

Digital Caster Lock for Raz-AT

Features a unique flip-down design that locks one rear caster (usually the left) in a forward position. This gives the attendant significantly better control, making the wheelchair much easier to steer.

Pivoting Offset Headrest Mount

Allows for up to 22° of lateral adjustment, depending on height.

Locking Footrest

• Swing-Away Design: Rotates out of the way for easy entry/exit without requiring full removal.

• Optional Lock: Replaceable spring button prevents accidental lifting or swinging.

Anti-Tippers

Anti-Tippers are available for all Raz chairs, for both front or rear.

ERJ Moulded Seat

Everest & Jennings-Inspired Molded Seat

• Exceptional Durability: Crafted with advanced molded technology built to last.

• Enhanced Comfort: Improved contours and a redesigned aperture reduce sitting pressure.

Harmony Backrest

Crafted from moulded foam, this backrest delivers contoured support as a sleek, low-maintenance alternative to tension-adjustable upholstery. Ideal for strict infection control environments, it is available in an 18” (46 cm) width and can be configured to either a 17” (43 cm) or 20” (51 cm) back height.

Symphony Backrest

• Customized Comfort: Available in a variety of soft, moulded pad sizes to ensure the perfect fit.

• Universal Compatibility: Adapts seamlessly to chair widths ranging from 14” to 30”.

• Anatomical Precision: Deeply contoured design provides optimal support without sacrificing seat depth or misaligning the user with the commode aperture.

• Clinical Grade: Fully corrosion-proof and compliant with strict infection control protocols.

Shower Only Seat

Designed exclusively for shower use, this seat features subtle contouring to enhance both comfort and user stability. For a truly personalized fit, the mounting brackets can be positioned forward or backward, offering a generous depth adjustment range of 16” to 21”. At a standard 18” width, it integrates seamlessly with all standard-width Raz chairs.

Splash Curtain

Directs urine stream into toilet bowl or commode pan

• Vinyl fabric upholstery can be trimmed to meet specifications

Standard Chest Strap

Adjustable strap with “velcro” enclosure provides additional trunk support.

Note: Chest belts should only be used in conjunction with pelvic belts.

Standard Pelvic Belt

• Side-release buckle

• 2” webbing

Swingaway Lateral Thoracic Support

Provides fully-adjustable trunk support. Pads are available in two styles/sizes.

Bodypoint Aeromesh Shower Chair Pelvic Belt

Provides fully-adjustable pelvic support. Pads are available in multiple sizes.

Bodypoint Aeromesh Shower Chair Pelvic Belt

Compact, 1-piece, tapered footrest improves maneuverability. Adjusts for lower leg lengths from 16″ (40.5cm) to 20.5″ (52cm). Fits Raz-AT/AP/SP/CAT.

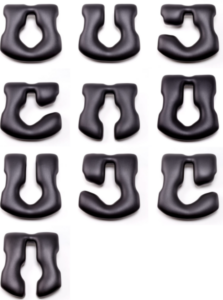

Visco Foam Interface Seats

• Industry-Leading Support: Maximizes comfort and pressure distribution.

• Visco-Elastic Foam Layer: Adds premium contouring to the classic Raz molded seat.

• Adjustable Depths: Available in 16″ (40.5 cm) and 19″ (48.5 cm) options.

• Versatile Configurations: Choose a bridged front or a specialized access opening (front, rear, left, or right).

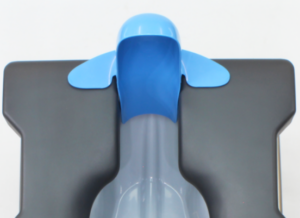

Whizard

• Has patent-pending lateral wings that are positioned under the medial aspect of the thighs to keepthe Whizard in place.

• Fits all Raz seats (excluding Shower-Only)

• Fits most toilet seats

• Autoclavable

• Can be positioned closer or further away from user

Residual Lower Limb Supports

The Universal Residual Limb Support is a unilateral option that utilizes the contoured calf pad from our Elevating Legrest. This support offers the following adjustments: 14° of angle, 5” fore/aft, 3” vertical

Custom supports can be constructed in unilateral or bilateral configurations, either fixed or adjustable angle.

Elevating Legrests

• Full elevation (level with seat surface)

• High pivot virtually eliminates shearing (knee lift)

• Padded pivot joint • Depth- / Angle-Adjustable Footplate

• Recessed, contoured calf pad

• Available in Standard and Forward-Offset configurations for seats that overhang front edge of frame

Angle/Depth Adjustable Footplates

• Accommodate plantar / dorsiflexion and fore / aft foot positioning

Foot/Leg Support Lock

• Keeps foot or leg support attached to the chair (loss prevention)

• Can be installed to allow foot or leg support to swing away or be retained in forward position

• Available for all foot and leg support models (except Z7FBAS / Z7FBT)

Arm Support Kit

• Locks arm in down position for transfers and stability

• Standard on Adjusta-Back

Quick-Release Axles

• Allow for easy removal of wheels

• Large button cap for ease of activation

• Not available for SP600

Swing-Away Lateral Thoracic Supports

• Multi-Purpose Support: Designed for Swing-Away Lateral Thoracic Supports, Leg Adductors, and Hip Adductors.

• Custom Contouring: Available in two sizes and can be adjusted and contoured.

• Secure Dual Locking: Safely locks into both forward and rearward positions.

• 3D Adjustability: Independent height, angle, and fore/aft tuning.

• Medial Offset: Heavy-duty L-bracket allows up to 3” of inward offset from the back post.

Bard Urine Drainage Bag Holder

• Clamps onto front seat support tubes to hold Bard Urine Drainage Bag
