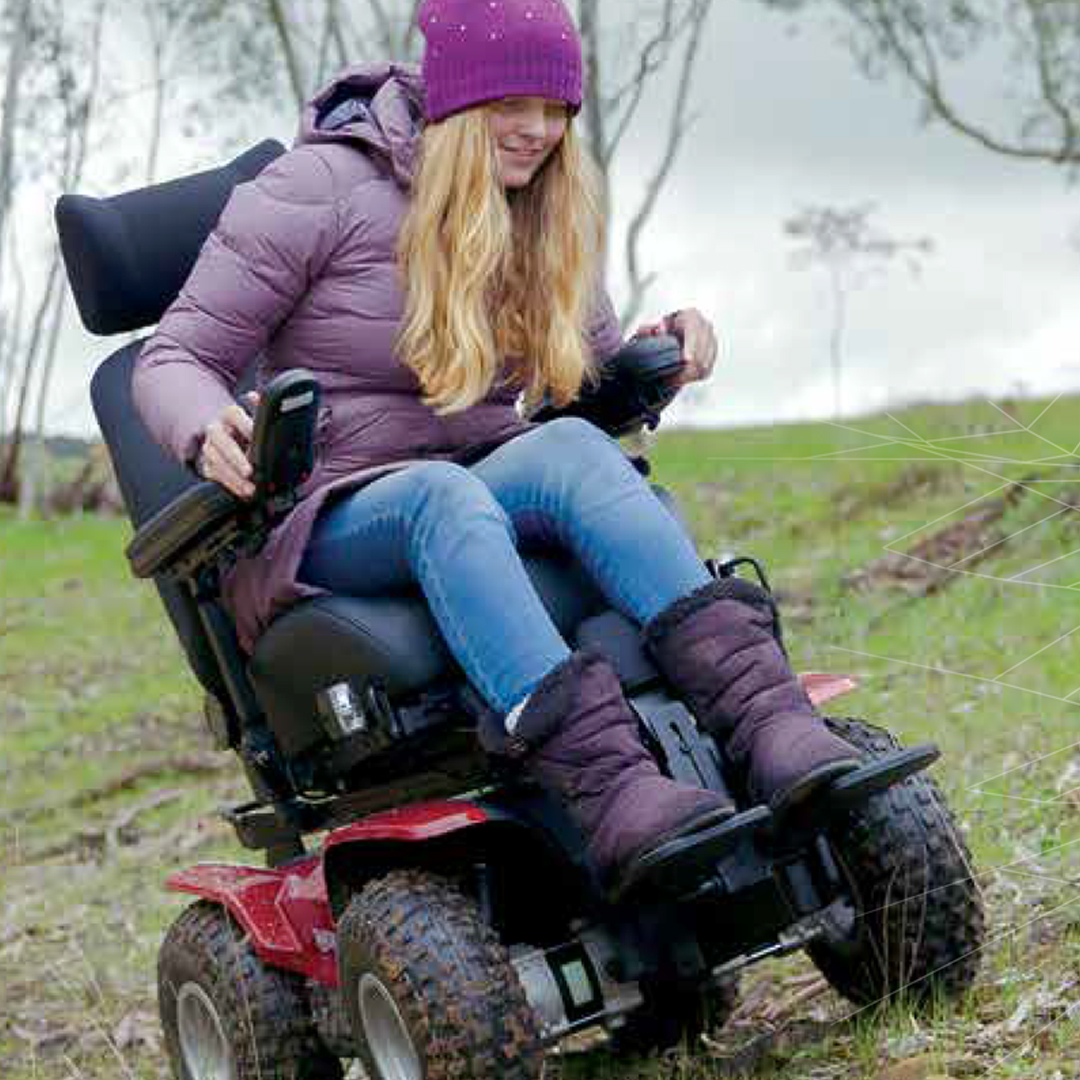

Magic Mobility Extreme XT4 Power Wheelchair
Push your outdoor boundaries further than ever before.
Step up to driving the world’s most advanced 4×4 powerchair. The XT4, leveraging Magic Mobility’s extensive off-road experience, offers exceptional stability, range, comfort, and control. Its patented front and rear suspension, unique servo-powered steering, and high-capacity batteries, combined with knobby, low-pressure tyres and unstoppable torque, making it the ultimate chair for outdoor adventurers.
Description
Magic Mobility Extreme XT4 Power Wheelchair – Step up to driving the world’s most advanced 4×4 powerchair. The XT4, leveraging Magic Mobility’s extensive off-road experience, offers exceptional stability, range, comfort, and control. Its patented front and rear suspension, unique servo-powered steering, and high-capacity batteries, combined with knobby, low-pressure tyres and unstoppable torque, making it the ultimate chair for outdoor adventurers.
- 4×4 Drive Mode: Each wheel is driven by high-torque 700W motors.
- Patented Suspension: Independent front and rear suspension for stability and comfort.
- Servo-Powered Steering: Precise control even on low traction surfaces.
- High-Capacity Batteries: Two 115 Ahr batteries for extended range.
- Customizable: Choice of colours and styling options.
- Australian Made: Designed for extreme off-road performance, built in Melbourne.
Specifications
| Feature | Specification |
|---|---|
| Length of base | 1000mm / 39″ (*legrest choice and seating size may increase chair length/width) |
| Width of base | 700mm / 27.5″ |
| Floor to top of seat pan height | 480mm / 19″ |
| Ground Clearance | 125mm / 5″ |
| User weight limit | 182kg / 400lb fixed frame, 160kg / 350lbs with lift & tilt |
| Top speed | 10kph / 6.2mph |
| Top speed at full seat elevation | 5kph / 3.1mph |
| Turning Radius | 1410mm / 55.5″ |
| Minimum chair weight (no power lift) | 185kg / 408lb |
| Standard chair weight (with power lift, tilt, recline & legrests) | 220kg / 485lb |
| Motors | 4 x 700W, Gear In Line |
| Motor IP rating 54 (splash resistant but not waterproof) | The wheelchair has electric motors and must not be driven through water, into rivers, creeks or the sea. |
| Wheels | Off-road pneumatic 145 / 70-6 black |
| Batteries | 115Ahr (C20) |
| Controller | R-Net controller with LCD display or LED option |
| Legrest options | Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating |
| Backrest and seat | Adjustable seat pan (12”/305mm deep to 24”/610mm wide) to fit MPS / Rehab or aftermarket seating options |
| Colours | Three colours standard |
| Tie down points | Crash test compliant |
Brochure
Funding App Resource
Standards Compliance: AS 3696 & ISO7176
